Product Description

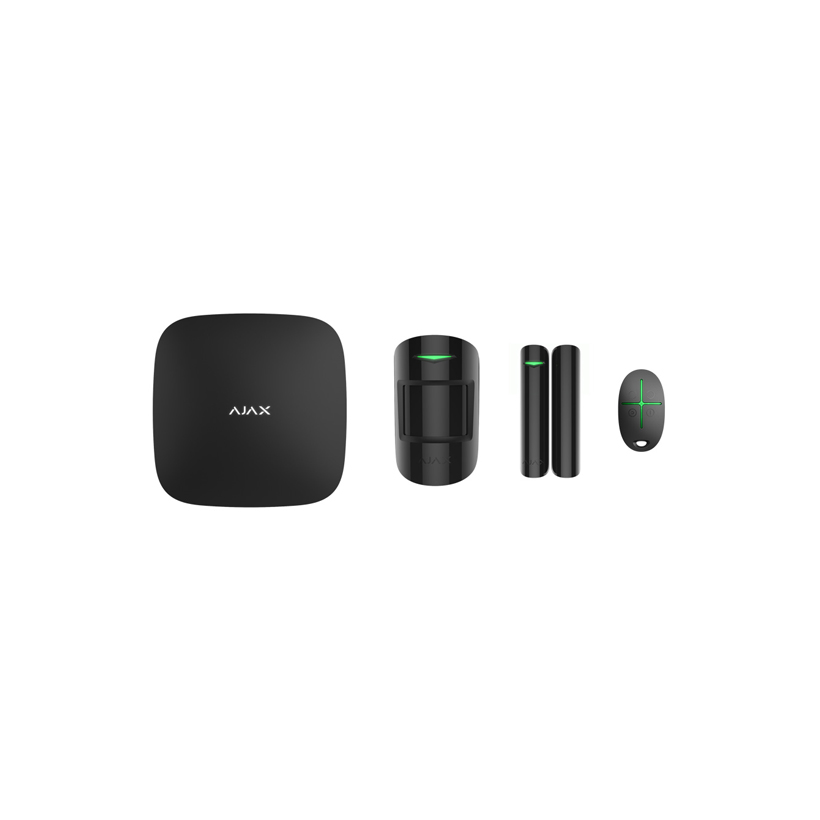

The starter kit for the Ajax security system.
The kit consists of the hub, motion detector, opening detector and key fob with panic button.
Assists in protecting the entrance from break-ins through windows and doors
Sends alarms to the owner's smartphone and Central Monitoring Station via GSM and Ethernet
Is controlled using the mobile app and key fob
Principle of operation
The sensing detectors detect human presence and opening of the window or door. The hub sends notification of an alarm to the Central Monitoring Station and the system owner's smartphone.
Features
The capabilities of the starter kit are extended due to connecting fire detectors, flood detectors, automation devices and video cameras.
The devices are installed within 30 minutes. The detectors are connected and set up using the mobile app and then mounted on the SmartBracket that come with the kit.
Tech specs
| Complete set | Intelligent control panel Wireless motion detector Wireless opening detector Wireless key fob |
| Maximum number of connected devices | 100 |
| Maximum number of users | 50 |
| Mobile applications | iOS 9.1 and later Android 4.1 and later |
| Alarm signal delivery time | 0.15 s |
| Battery life | Up to 7 years |
| Jeweller radio technology | Communication range with central unit - up to 1,700 m in an open space Two-way communication between devices Operating frequencies - 868.7-869.2 MHz Self-adjusting RF output power - up to 20 mW Block encryption based on AES algorithm Device polling period - 12−300 s |
| Communication channels | Ethernet, GSM (850/900/1800/1900 MHz) |
| SIM card support | Micro SIM 2G |
| Power supply | Mains supply: 110−250 V Up to 15 hours of offline operation when Ethernet is switched off |
| Video surveillance | Up to 10 cameras or DVRs |
